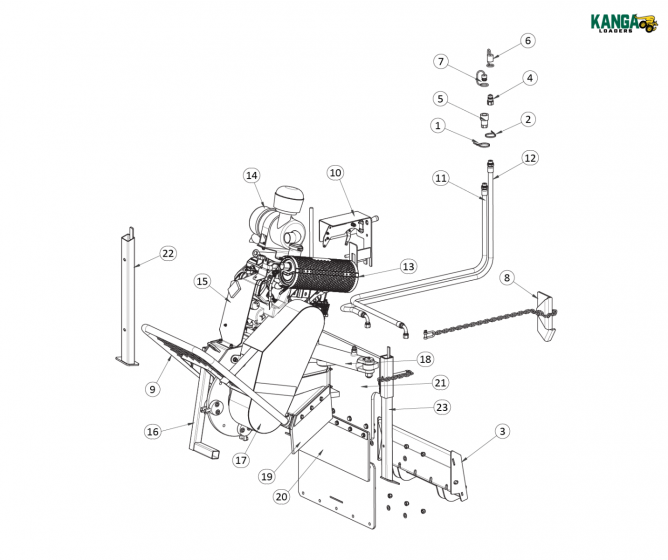

STUMP GRINDER ASSEMBLY

NO.	PART #	DESCRIPTION
1	EC-000337	WHITE - CABLE TIE
2	EC-000338	BLUE - CABLE TIE
3	FR-001873	BOLT ON PICKUP
4	HC-000009	COUPLING MALE
5	HC-000010	COUPLING FEMALE
6	HC-000032	DUST COVER MALE
7	HC-000033	DUST COVER FEMALE
8	KA-001302	ARM LOCK
9	KA-001308	STUMP GRINDER FRONT PROTECTION BAR ASSEMBLY
11	L170010-1	HOSE
12	L170010-2	HOSE
14	DL-000478	5" AIR CLEANER CANISTER KIT (INC PRIMARY FILTER)
16	KA-001312	STUMP GRINDER FRONT LEG
17	KA-001309	BELT GUARD
18	CY-000218	STUMP GRINDER SLEW CYLINDER
19	L171601	SKIRT
20	L171611	SKIRT
21	KA-001498	STUMP GRINDER MOUNT PLATE
22	KA-001310	STUMP GRINDER LEG ASSEMBLY RIGHT HAND
23	KA-001311	STUMP GRINDER LEG ASSEMBLY LEFT HAND
